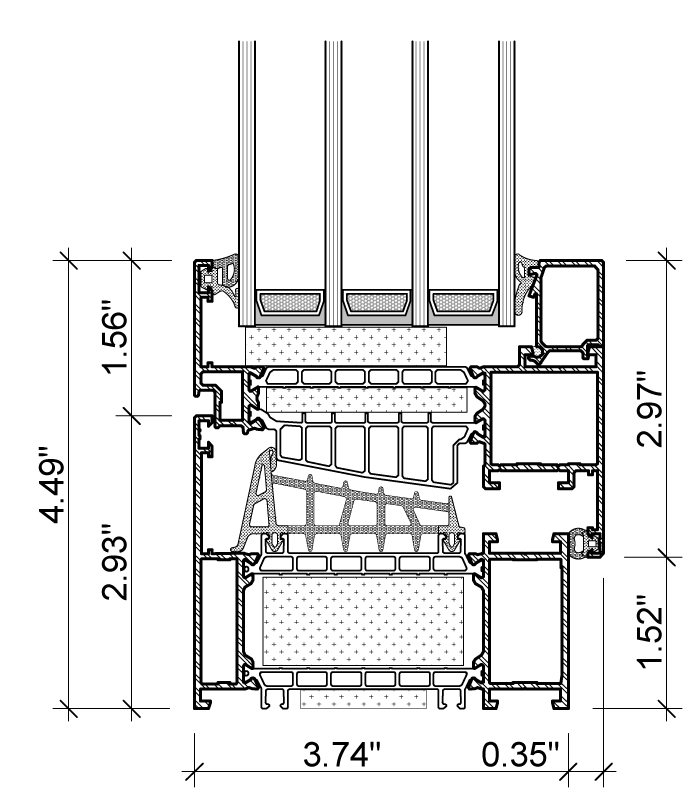

CAD Drawings

Thermal Performance



70mm quad-pane insulated glass with three low-e coatings
Aluminum window system with continuous thermal break consisting of thermally resistant plastic spacers with multiple insulative air cells
Silica Aerogel thermal core for superior thermal properties
Full-width cellular EPDM center gasket improves energy efficiency and draft & water resistance
Great sound protection
Stiff aluminum profiles facilitate large window and door sizes
Ideal for both residential and commercial applications
High thermal insulation for Passive House and Zero Net Energy construction

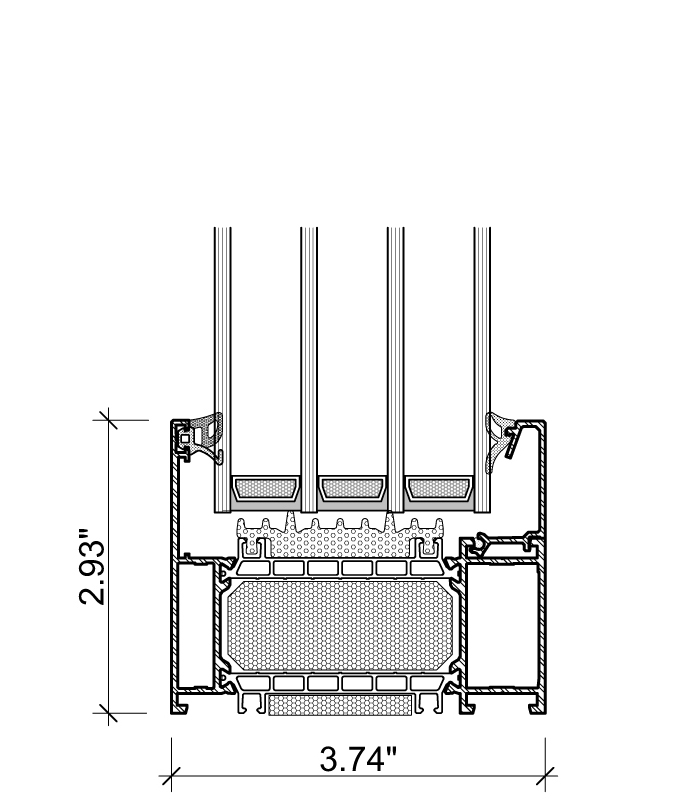

CAD Drawings

Thermal Performance



70mm quad-pane insulated glass with three low-e coatings
Aluminum window system with continuous thermal break consisting of thermally resistant plastic spacers with multiple insulative air cells
Expanded polystyrene "SI" thermal core for improved thermal properties
Full-width cellular EPDM center gasket improves energy efficiency and draft & water resistance
Great sound protection
Stiff aluminum profiles facilitate large window and door sizes
Ideal for both residential and commercial applications
High thermal insulation for Passive House and Zero Net Energy construction

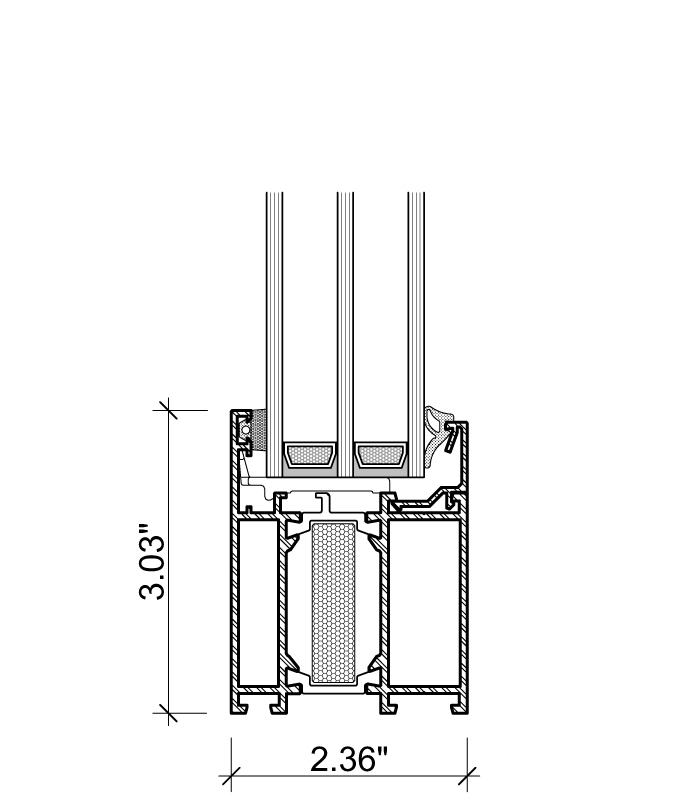

CAD Drawings

Thermal Performance



48mm triple-pane insulated glass with two low-e coatings
Aluminum window system with continuous thermal break consisting of thermally resistant plastic spacers with multiple insulative air cells
Silica Aerogel thermal core for superior thermal properties
Full-width cellular EPDM center gasket improves energy efficiency and draft & water resistance
Great sound protection
Stiff aluminum profiles facilitate large window and door sizes
Ideal for both residential and commercial applications
High thermal insulation for Passive House and Zero Net Energy construction




CAD Drawings

Thermal Performance



48mm triple-pane insulated glass with two low-e coatings
Aluminum window system with continuous thermal break consisting of thermally resistant plastic spacers with multiple insulative air cells
Expanded polystyrene "SI" thermal core for improved thermal properties
Full-width cellular EPDM center gasket improves energy efficiency and draft & water resistance
Great sound protection
Stiff aluminum profiles facilitate large window and door sizes
Ideal for both residential and commercial applications
High thermal insulation for Passive House and Zero Net Energy construction




CAD Drawings

Thermal Performance



48mm triple-pane insulated glass with two low-e coatings
Aluminum window system with continuous thermal break consisting of thermally resistant plastic spacers with multiple insulative air cells
Additional "SI" thermal baffle in system core further reduces heat loss
Full-width cellular EPDM center gasket improves energy efficiency and draft & water resistance
Great sound protection
Stiff aluminum profiles facilitate large window and door sizes
Ideal for both residential and commercial applications
High thermal insulation for Passive House and Zero Net Energy construction

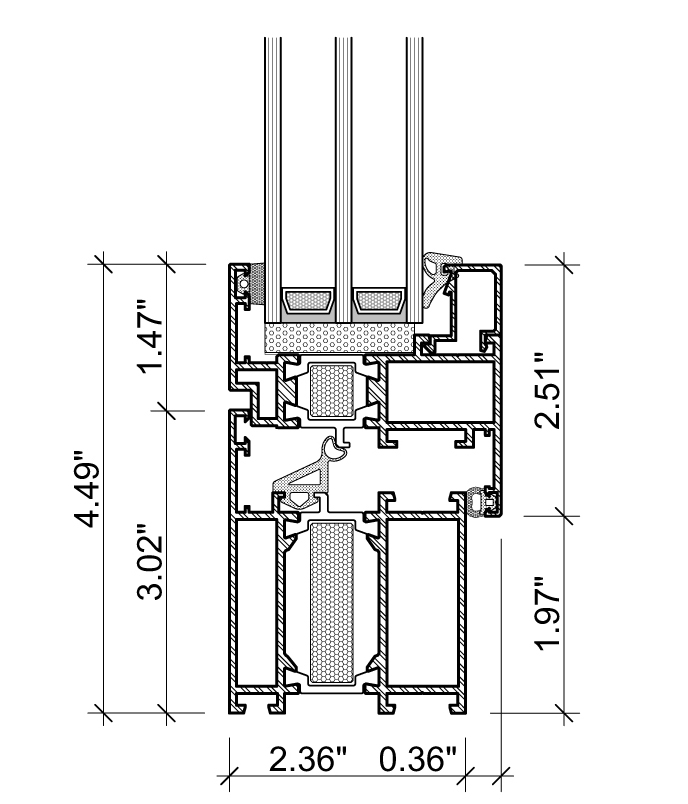

CAD Drawings

Thermal Performance



40mm triple-pane insulated glass with two low-e coatings
Aluminum window system with continuous thermal break consisting of thermally resistant plastic spacers
Additional expanded polystyrene "SI" thermal baffle in core reduces heat loss
Two EPDM compression gaskets keep drafts and moisture outside
Great sound protection
Stiff aluminum profiles facilitate large window and door sizes
Ideal for both residential and commercial applications
High thermal insulation suitable for Zero Net Energy construction


21_Sublime Windows_MB-60 SI.jpg

SublimeWindows_R-Value 5_2.jpg
