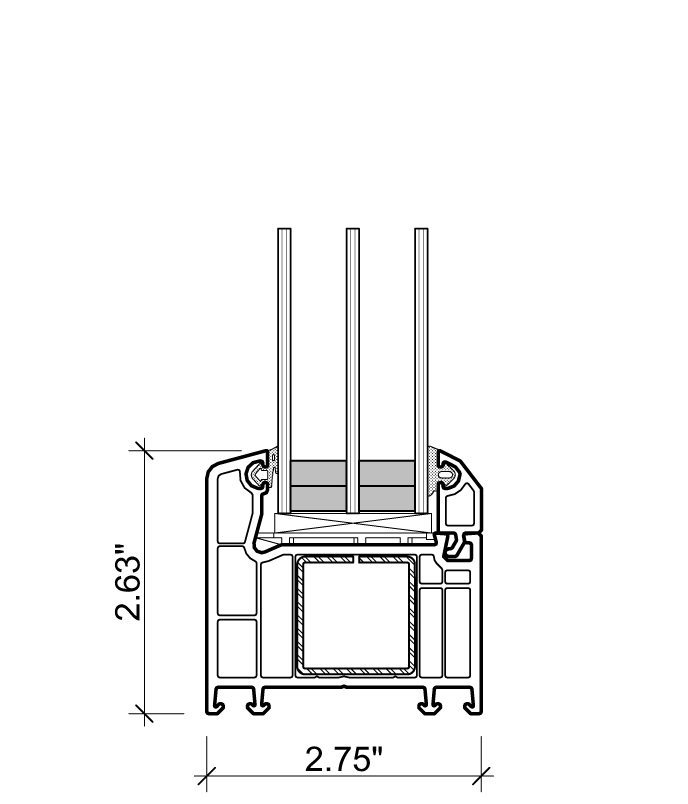

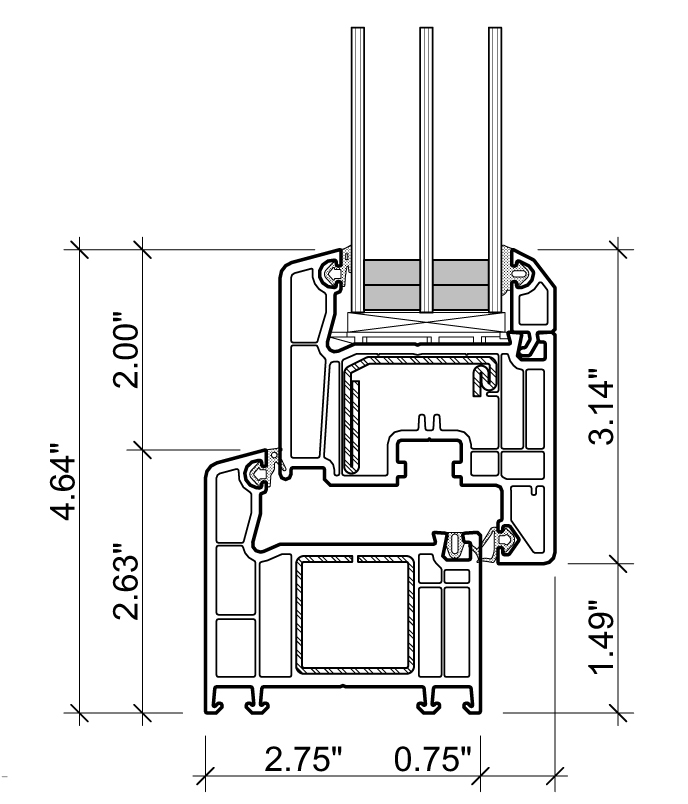

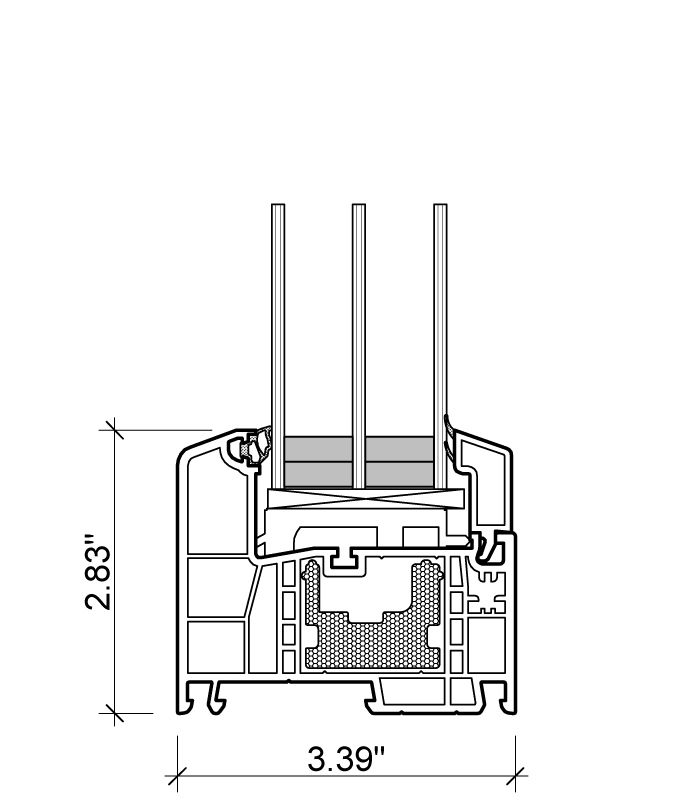

CAD Drawings

Thermal Performance

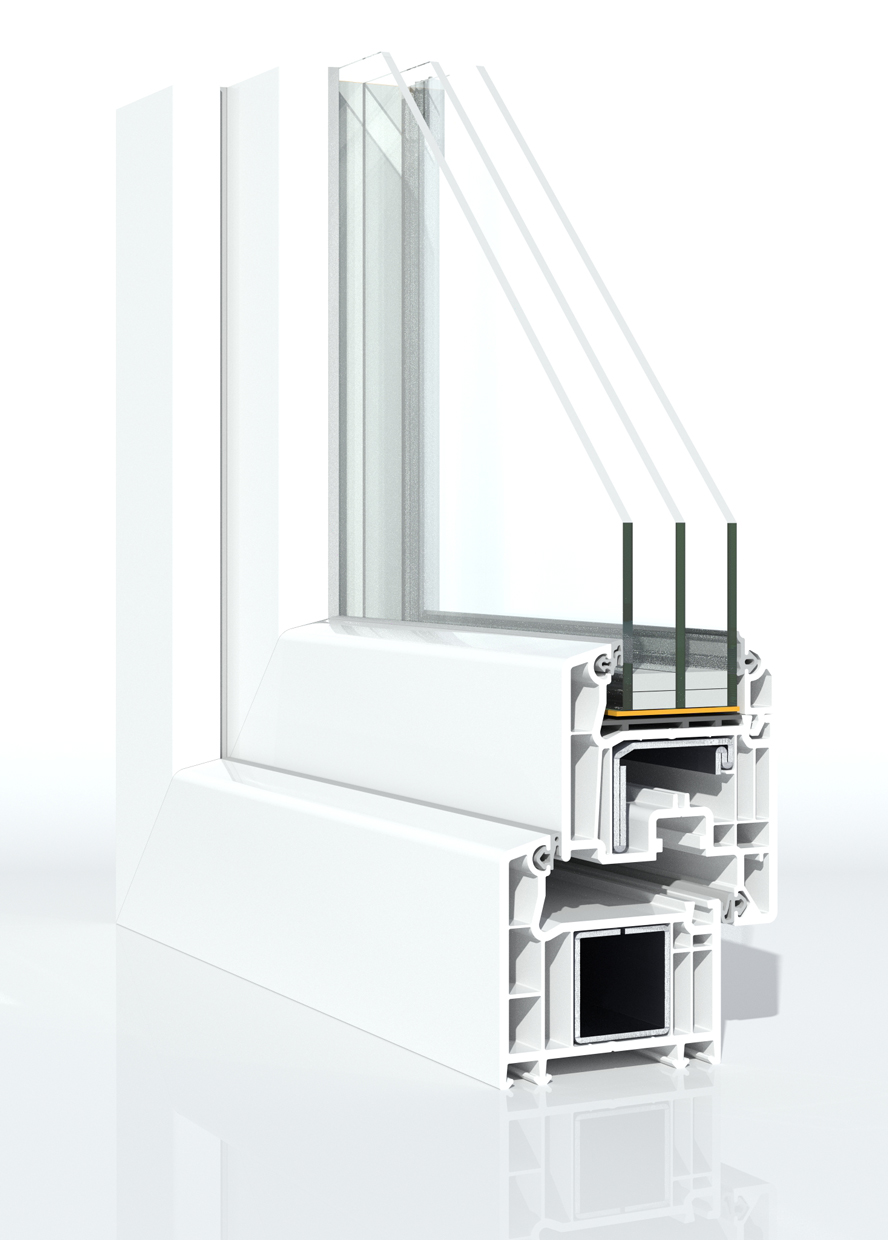

1 1/2" triple-pane insulated glass with two low-e coatings
Unplasticized PVC extrusion for a rigid, durable frame that is fully recyclable
5 - Chamber frame utilizing the insulation properties of dead air
Two EPDM compression gaskets keep drafts and moisture outside
Great sound protection
Galvanized steel reinforced sash and frame facilitates larger window sizes
Ideal for both residential and commercial applications
High thermal insulation suitable for Zero Net Energy construction

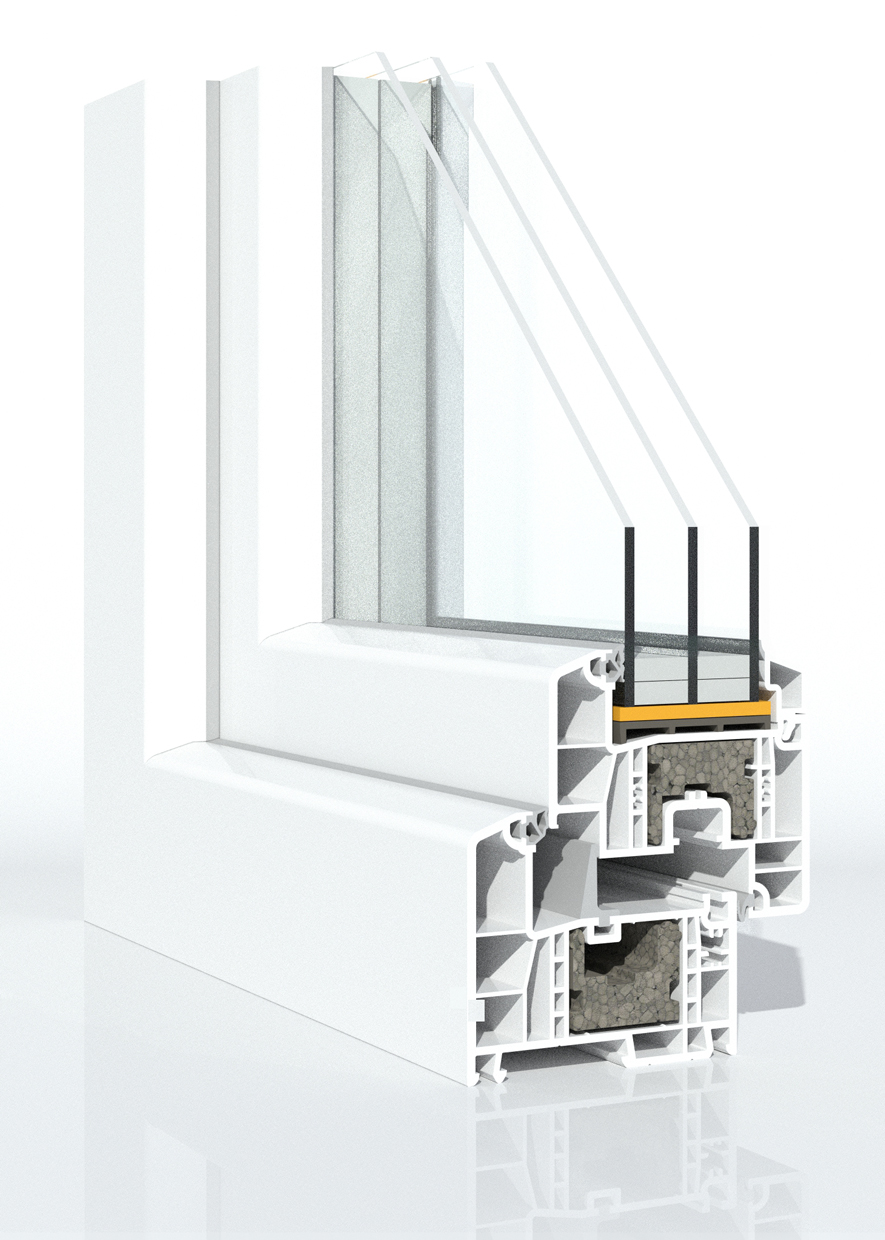

1 3/4" Triple-pane insulated glass with two low-e coatings
Unplasticized PVC extrusions with a fiberglass composite core
6 - Chamber frame with insulating foam inserts for superior energy efficiency
Three EPDM gaskets keep drafts and moisture outside
Great sound protection
Fiber-reinforced core for increased energy efficiency and 40% less weight
Ideal for both residential and commercial applications
High thermal insulation for Passive House and Zero Net Energy construction
