CAD Drawings

Thermal Performance



48mm triple-pane insulated glass with two low-e coatings
Unplasticized PVC extrusion with a fiberglass composite core
6 - Chamber frame with expanded polystyrene insulation inserts
Three EPDM gaskets keep drafts and moisture outside
Great sound protection
Fiber-reinforced core for increased energy efficiency and 40% less weight
Ideal for both residential and commercial applications
High thermal insulation for Passive House and Zero Net Energy construction

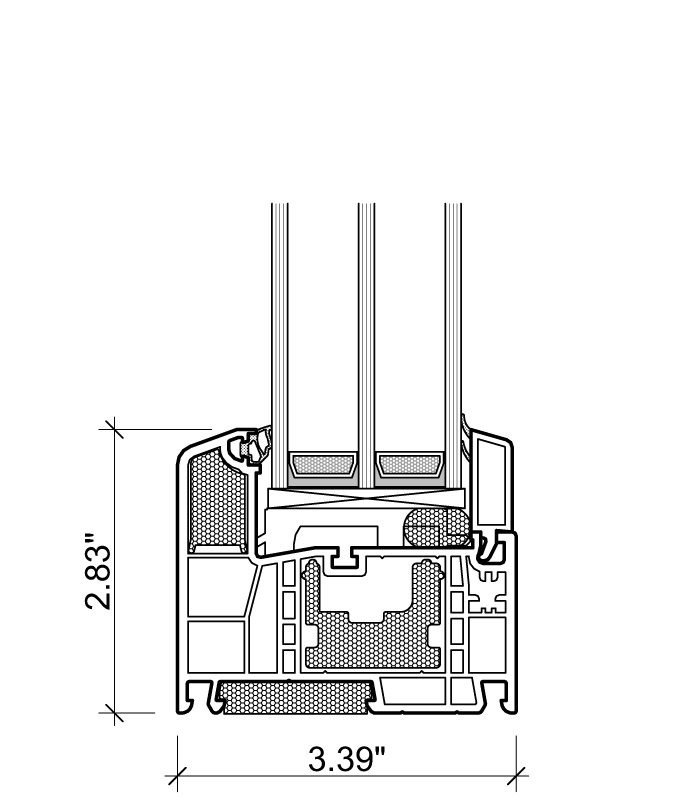

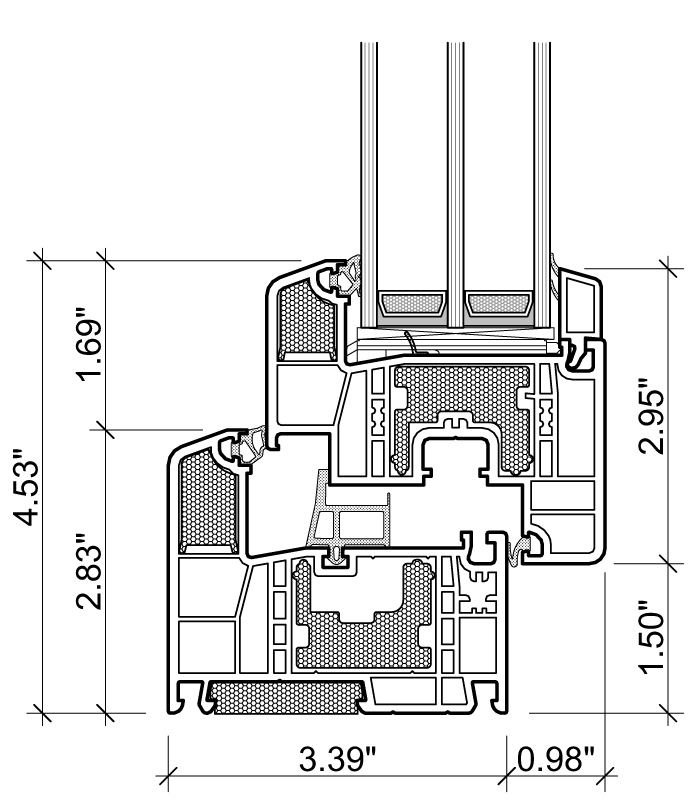

15_Sublime Windows_Geneo Passive.jpg


CAD Drawings

Thermal Performance



48mm triple-pane insulated glass with two low-e coatings
Unplasticized PVC extrusion with a fiberglass composite core
6 - Chamber frame with expanded polystyrene insulation inserts
Three EPDM gaskets keep drafts and moisture outside
Great sound protection
Fiber-reinforced core for increased energy efficiency and 40% less weight
Ideal for both residential and commercial applications
High thermal insulation for Passive House and Zero Net Energy construction

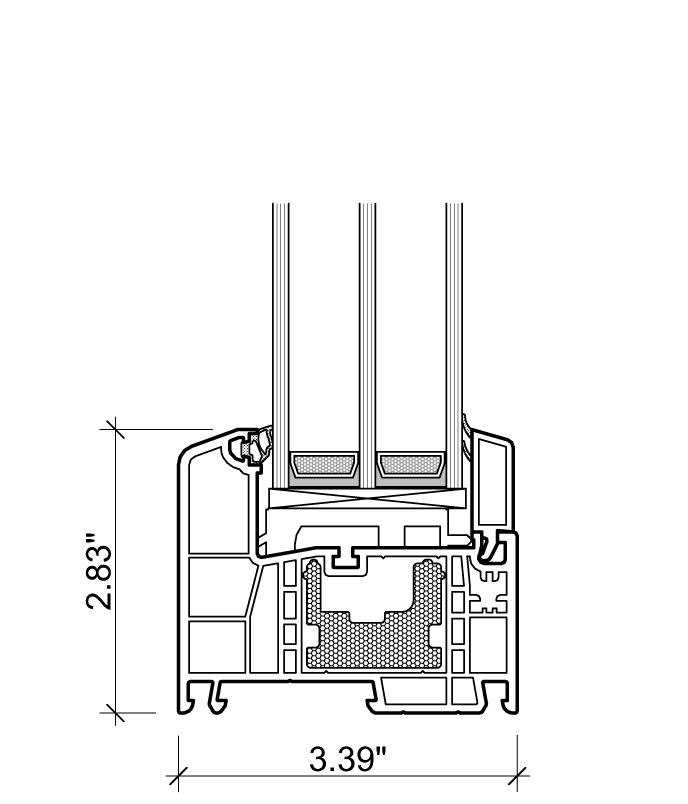

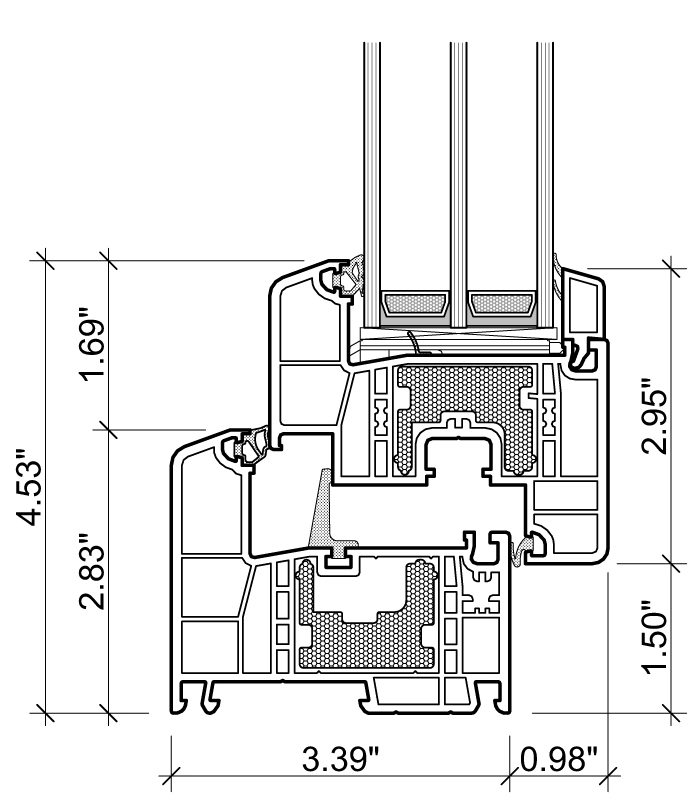

14_Sublime Windows_Geneo Plus.jpg


CAD Drawings

Thermal Performance



48mm triple-pane insulated glass with two low-e coatings
Unplasticized PVC extrusion for a rigid, durable frame that is fully recyclable
7 - Chamber frame utilizing the insulation properties of dead air
Three EPDM gaskets keep drafts and moisture outside
Great sound protection
Galvanized steel reinforced sash and frame facilitates larger window sizes
Ideal for both residential and commercial applications
High thermal insulation for Passive House and Zero Net Energy construction

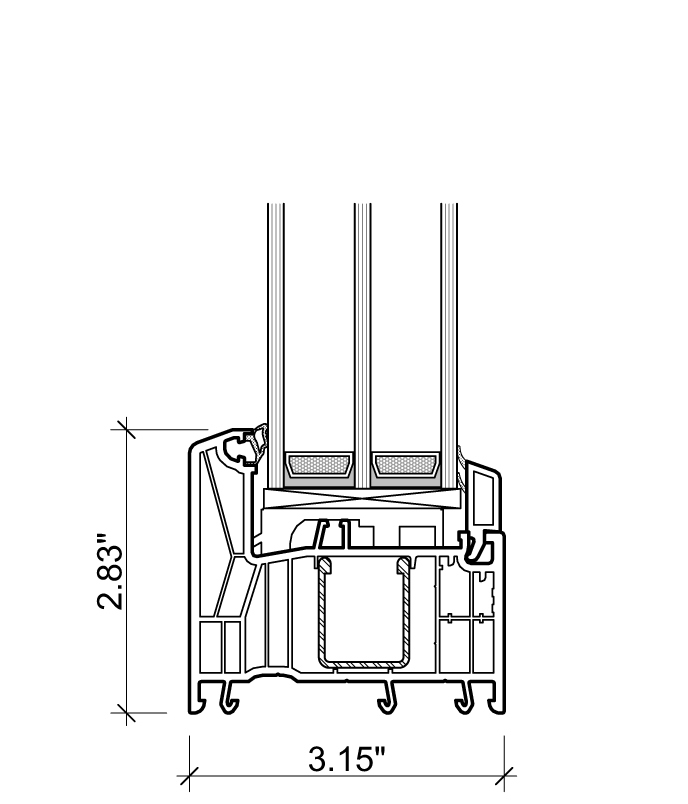

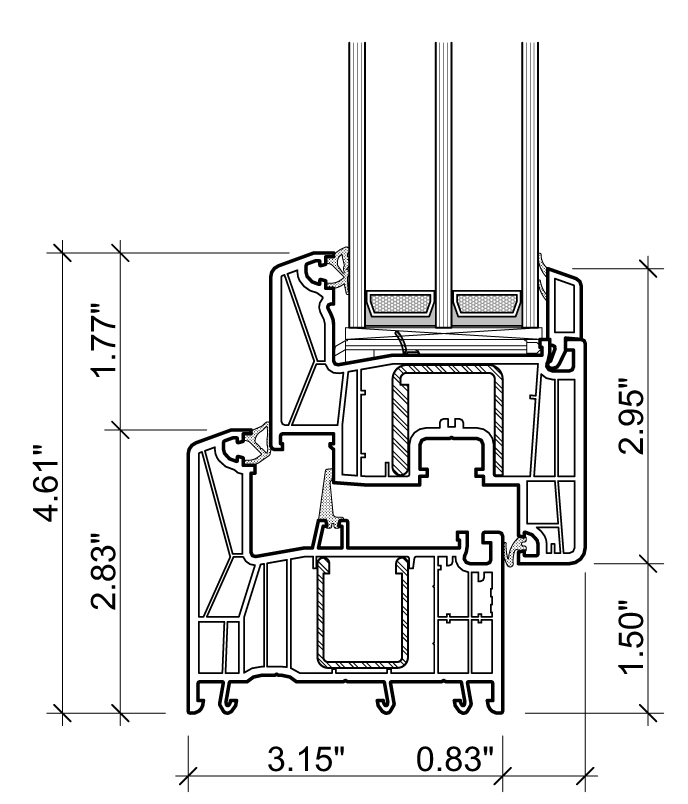

12_Sublime Windows_Synego.jpg

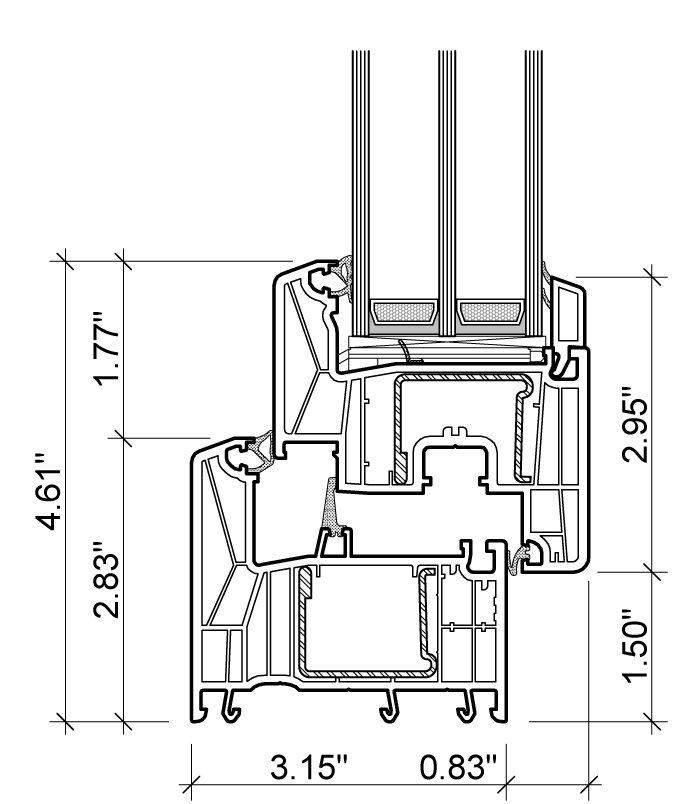

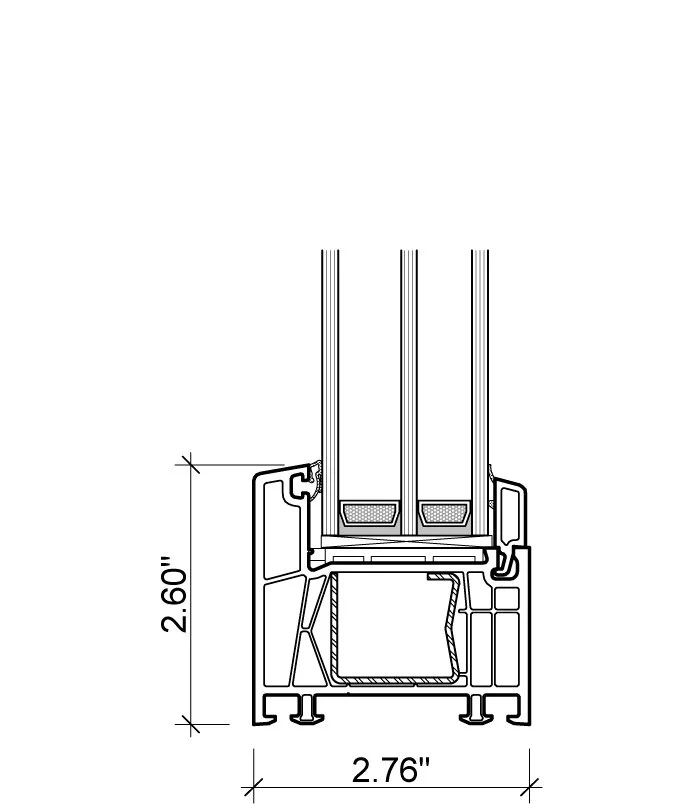

CAD Drawings

Thermal Performance



40mm triple-pane insulated glass with two low-e coatings
Unplasticized PVC extrusion for a rigid, durable frame that is fully recyclable
5 - Chamber frame utilizing the insulation properties of dead air
Two EPDM compression gaskets keep drafts and moisture outside
Great sound protection
Galvanized steel reinforced sash and frame facilitates larger window sizes
Ideal for both residential and commercial applications
High thermal insulation suitable for Zero Net Energy construction
