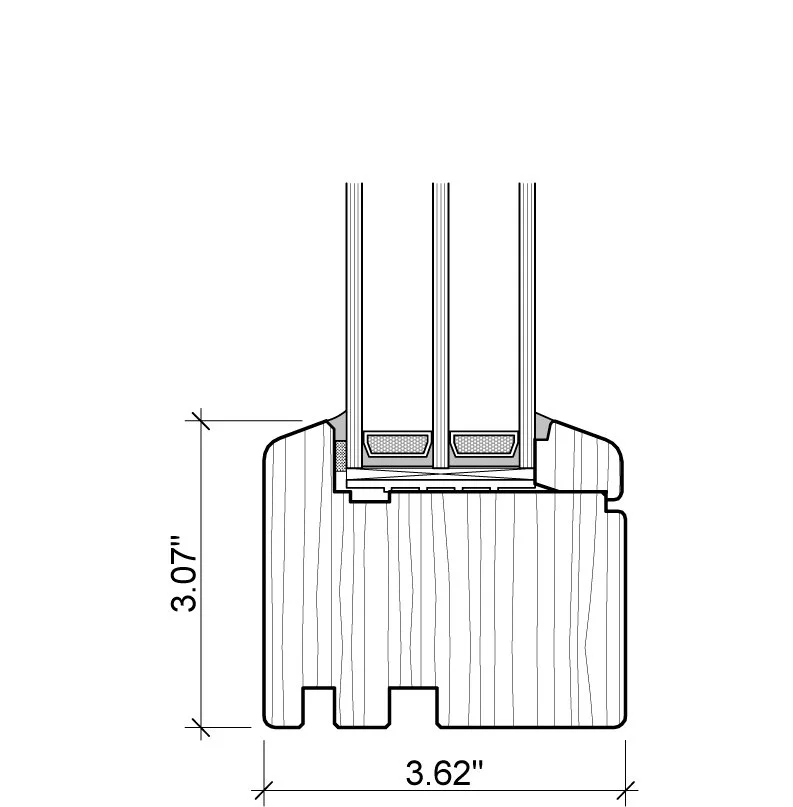

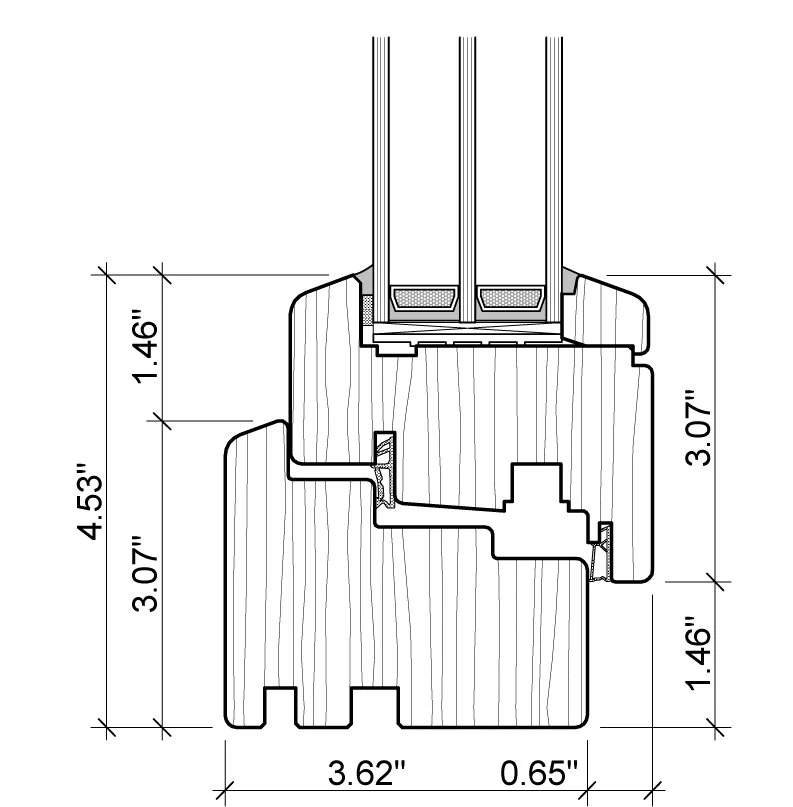

CAD Drawings

Thermal Performance



44mm triple-pane insulated glass with two low-e coatings
Aluminum cladding with ABS plastic spacer system over
78mm wood window frame with PURNIT recycled polyurethane core
Rear-ventilated assembly allows wood to breath and aluminum cladding
to expand during temperature fluctuations
Many wood species available, including pine, meranti, oak, and others
Four EPDM gaskets keep drafts and moisture outside
Great sound protection
Ideal for both residential and commercial applications
High thermal insulation for Passive House and Zero Net Energy construction


34_Sublime Windows_Miratherm Passive.jpg

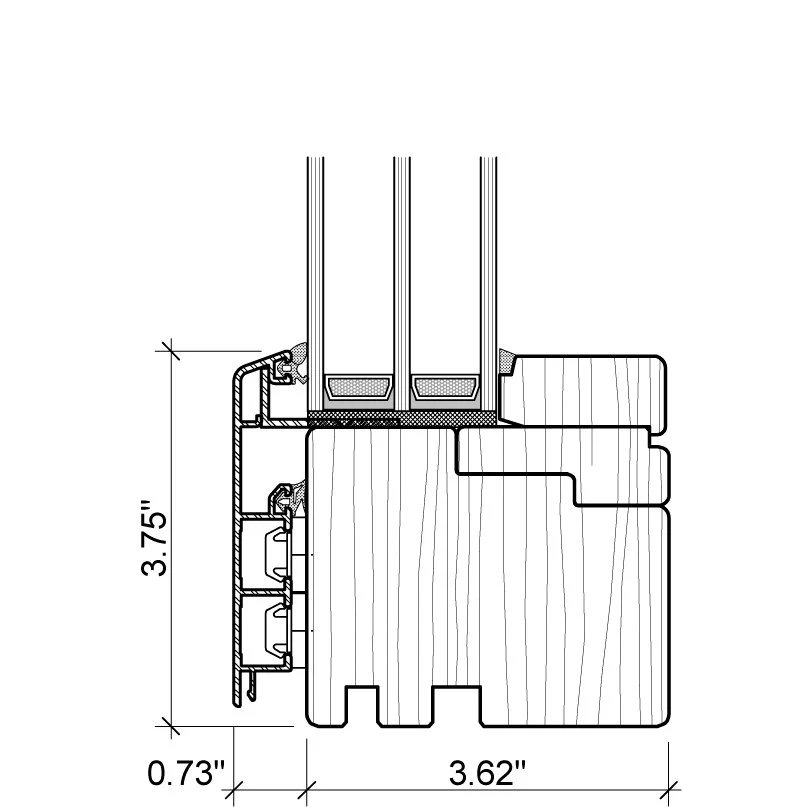

CAD Drawings

Thermal Performance



48mm triple-pane insulated glass with two low-e coatings
Aluminum cladding over 88mm wood window frame
Rear-ventilated assembly allows wood to breath and aluminum cladding
to expand during temperature fluctuations
Many wood species available, including pine, meranti, oak, and others
Four EPDM gaskets keep drafts and moisture outside
Great sound protection
Ideal for both residential and commercial applications
High thermal insulation for Passive House and Zero Net Energy construction

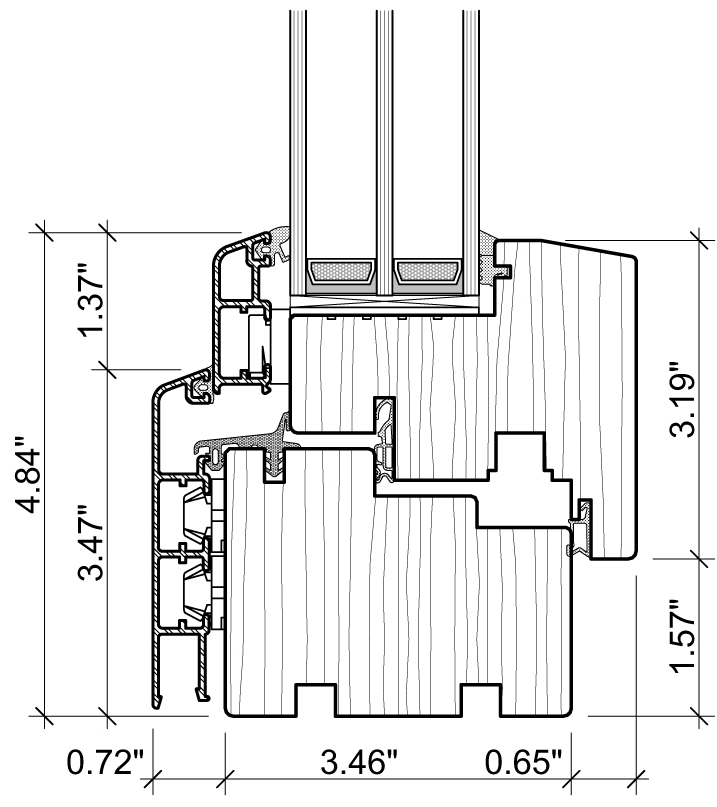

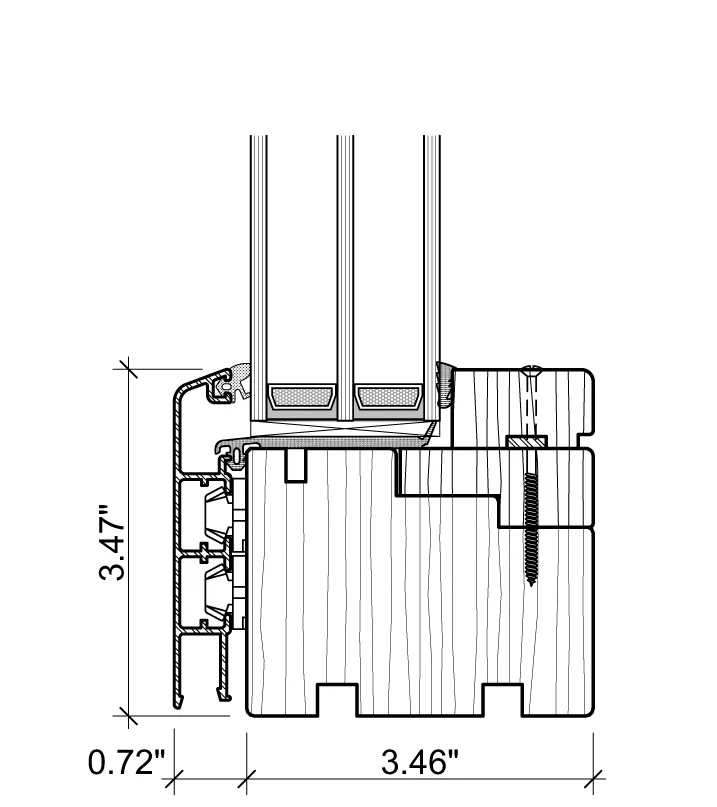

32_Sublime Windows_Mira Classic 88.jpg




CAD Drawings

Thermal Performance



48mm triple-pane insulated glass with two low-e coatings
Aluminum cladding over 88mm wood window frame
Rear-ventilated assembly allows wood to breath and aluminum cladding
to expand during temperature fluctuations
Many wood species available, including pine, meranti, oak, and others
Four EPDM gaskets keep drafts and moisture outside
Great sound protection
Ideal for both residential and commercial applications
High thermal insulation for Passive House and Zero Net Energy construction


33_Sublime Windows_Mira Contour 88.jpg




CAD Drawings


COMING SOON


COMING SOON

Thermal Performance


COMING SOON



48mm triple-pane insulated glass with two low-e coatings
88mm wood window frame available in many wood species, including pine, meranti, oak, and others
Rear-ventilated aluminum drip edges promote proper water drainage and allow wood to breath
Three EPDM compression gaskets keep drafts and moisture outside
Great sound protection
Ideal for both residential and commercial applications
High thermal insulation for Passive House and Zero Net Energy construction


31_Sublime Windows_Climaline 88.jpg
